Changes and Corrections

Despite my best efforts some errors found their way into the offsetspublished for not just one, but all three boats in the book.

Coot

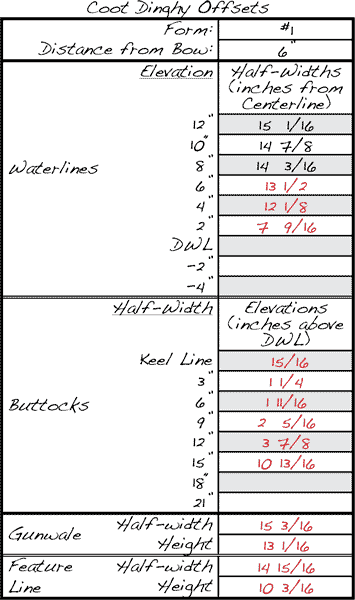

Form #1 of the Coot has the offsets shifted around a bit. They should be as shown below:



Coot corrected offsets



Nymph

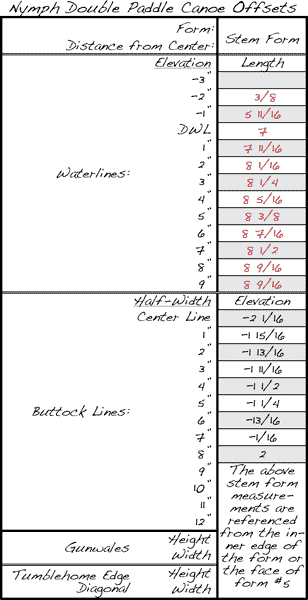

The stem form of the Nymph had the waterline numbers shifted up one line, they should be as shown:



Nymph Canoe Offset Corrections



Petrel

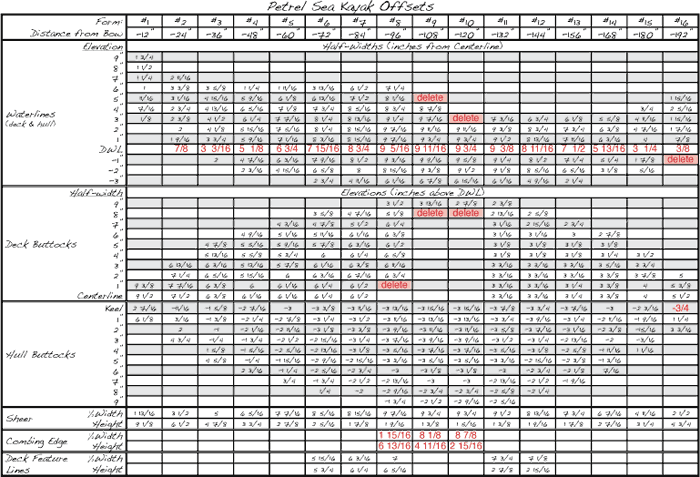

The Petrel had two different problems. Somehow the DWL numbers got multiplied by 2. And, the edge of the cockpit recess got messed up significantly.



Petrel Kayak Offset Corrections
